Deep Pleat HEPA Filter With Aluminum Separator And MDF Frame

Brand Name:	Compo
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Material:

High Efficiency Particulate Air (HEPA) Filter

Frame Material:

Aluminum

Application:

Air Purification

Usage:

HVAC Systems

Highlight:

Deep Pleat HEPA Filter

Aluminum Separator HEPA Filter

MDF Frame HEPA Filter

Product Description

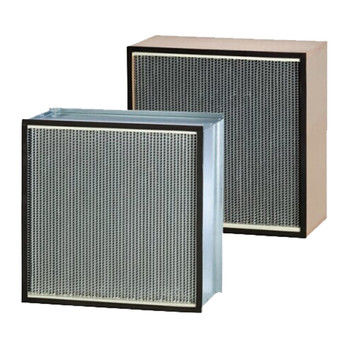

Deep Pleat HEPA Filter With Aluminum Separator And MDF Frame For Easy Installation

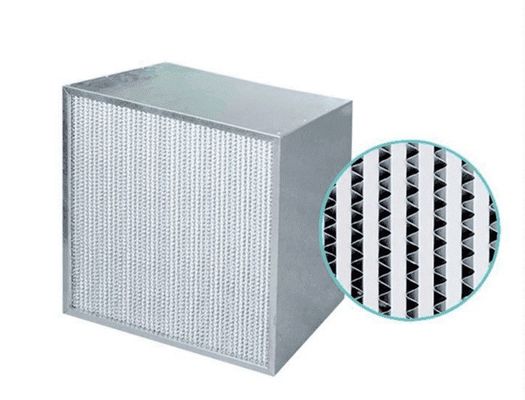

Deep pleat HEPA filter

Deep pleat HEPA filter, also called as absolute HEPA filter, is made by pleated HEPA paper with aluminum separator and then assembled with metal frame or MDF frames

Compo’s deep pleat HEPA filters are widely used in air handlers in medical facilities, pharmaceuticals, and clean process manufacturing ,food processing plants,cleanrooms, hospitals, biological laboratories, laminar flow clean benches and safety cabinets, and research laboratories. Get a quote today!

Deep pleated HEPA filter 2

Product Features

Available in efficiency 85% 95%, 99.5%.99.97%.99.995%
Large air flow, Large filtration area and High efficiency

Large holding capacity
High efficiency and low pressure drop,Stable superior quality

Why Choose Compo?

Compo has been making Deep pleat HEPA filters for more than 15 years and we are committed to providing the best air filters with good service.

100% Tested before delivery

Each absolute HEPA filter shall be tested before shipping to clients.

Factory price and Fast Delivery

Our state-of-art automatic machines can product fast and lower the cost of production. So that we can offer competitive price for clients.

Low MOQ

Even 5 pieces can be start as trial order.

Deep pleat HEPA filter

Customize Now!

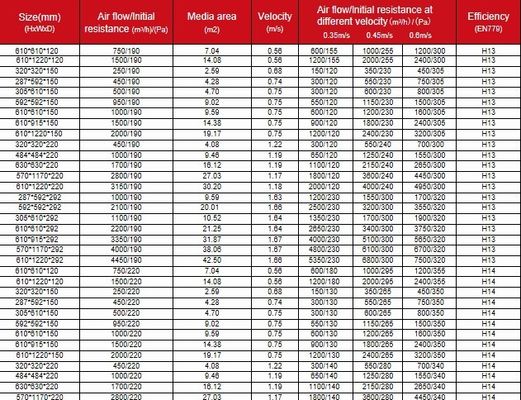

Specifications of Deep Pleat HEPA filter

We produces different sizes of Deep pleat HEPA air filters with different sizes.

Filter media	Micro glass fiber
Frame material	Extruded aluminum/ Folding aluminum/ Galvanized steel/ Stainless steel/ MDF
Separator	Aluminum foil
Sealant	Pu two-component polyurethane glue
Gasket	PU endless gasket /EVA/ EPDM
Optional frame thickness (mm)	80, 96 ,120, 150 ,220, 292, 305
Max. Temperature to resist	100 C degree
Max working environment Humidity	100%

deep pleat HEPA filter

test report deep pleat HEPA filter

Q&A with Your Questions about Deep pleat HEPA filters

Some questions about Deep pleat HEPA filters you may be interested before buying.

What is a deep pleated HEPA filter?

Deep pleated HEPA filter is made by pleated HEPA filter with thick thickness like 150mm 305mm. There is Pleated aluminum foil between each layer of pleated HEPA paper. Can remove pollen, dust, and mold spores and make air fresh. Efficiency can be from F6-H14 according to EN779. EN1822. Merv 10-MERV 18 according to Ashare standard.

What is a Deep Pleat HEPA filter made of?

Deep pleat HEPA filters are usually made of Mirco glass fiber paper.

Are there different grades of Deep pleat HEPA filters?

Yes, there are different grades of Deep pleated HEPA filter. The efficiency range can be from 65%-99.995%.

How often does Deep pleat HEPA filter need to be changed?

Deep pleat HEPA filters can usually last 8-12 months according to the air quality of working conditions.

Can you replace the deep pleat HEPA filters if they are damaged during shipping?

We can replace the Deep pleat HEPA filters for you if the filters are damaged during the transportation.

What am I supposed to do if i want to buy Deep pleat HEPA filter from your?

You can reach our sales on our contact page of send e-mail directly to jack@cpsztech.com.
