Air Filter Material
Created with Pixso.

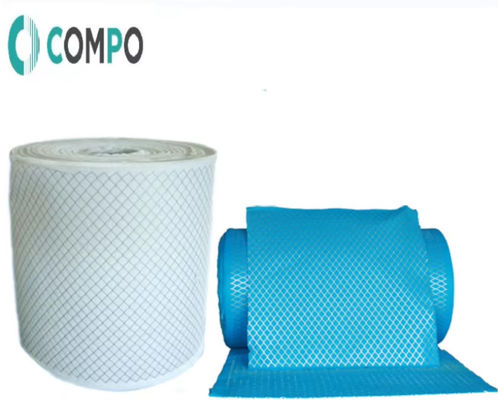

MERV 8-14 Polyester Fiber Laminated Mesh Pre Filter Media Roll For Air Ventilation System

MERV 8-14 Polyester Fiber Laminated Mesh Pre Filter Media Roll For Air Ventilation System

MERV 8-14 Polyester Fiber Laminated Mesh Pre Filter Media Roll For Air Ventilation System

Brand Name: Compo
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Keyword:
Pre AC HVAC Furnace Air Filter
Application:
Air Filtration System
Material:
Synthetic Media
Efficiency:
G3/G4 F5 F6
Highlight:

MERV 8 Pre Filter Media Roll

,

Laminated Mesh Filter Media Roll

,

Polyester Fiber Pre Filter Media

Product Description

Custom High Quality MERV 8-14 Polyester Fiber Material Pre-Filter Laminated Mesh Air Filter Media Roll For Air Ventilation System



Product performance

The product is non-toxic and environmentally friendly.

The density of the filter material is gradually increased to form a ladder structure.

Low resistance, large dust capacity, water resistance, and long service life.



Pitem

Pre filter media

Applicable Industries

Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Construction works

Video outgoing-inspection

Provided

Machinery Test Report

Not Available

Warranty of core components

6 Months

Construction

Wire Mesh

Place of Origin

China

Weight

1KG

Warranty

6 Months

Product name

Pre AC HVAC Furnace Air Filter

Type

Pre Air Filter Media

Application

Air Filtration System

Material

Synthetic Media

Efficiency

G3/G4 F5 F6

Keyword

HVAC Pre Filter

Frame

Paper Carboard

Suitable for

Furnace

Size

Customized Size Avaialble

Color

White+Blue Green Black



Specifications of needle-punched filter media





Item Name

Filtration Class

Thickness (mm)

Weight(gsm)

Rated air velocity (m/s)

Initial Press drop(Pa)

Compo-150N

G3

3

150

1.5

20

Compo-200N

G3

5

200

1.5

25

Compo-320N

G4

8

320

1.5

35



Specifications of high loft pre filter media





Item Name

Filtration Class

Thickness (mm)

Weight(gsm)

Rated air velocity (m/s)

Initial Press drop(Pa)

Compo-150H

G2

10

150

1.5

18

Compo-200H

G4

15

200

1.5

25

Compo-250H

G4

22

250

1.5

30



Specifications of Blue and White pre filter media





Item Name

Filtration Class

Rated Air Flow(m/s)

Weight(gsm)

Initial air resistance(Pa)

Compo-180B

G4

1.5

180

22

Compo-220B

G4

1.5

220

28
