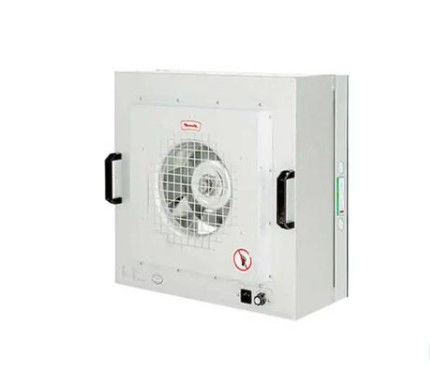

Laminar Flow Hood Hepa Fan Filter Units FFU H14 Efficiency Noise Less Than 54dB

Brand Name:	Compo
MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Laboratory Clean Room

Product Name:

FFU Fan Filter Unit

HEPA Filter:

99.99%@0.3um

Frame:

Galvanized,Aluminum

Suitable For:

FFU

Packaging Details:

PE bags inside, Carton box outside

Supply Ability:

1000pcs per day

Highlight:

H14 Fan Filter Units

54dB Fan Filter Units

Laminar Flow Hood Hepa FFU

Product Description

Laminar Flow Hood Hepa Fan Filter Unit FFU H14 Efficiency FFU Noise Less Than 54dB

Introduction

Fan Filter Units (FFU) are the most energy efficient line of fan filter units (fan filter modules) on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities,lab and mushroom production workshops, the FFU delivers high volumes of HEPA filtered airflow (for 99.99% removal of contaminants) at low sound levels while reducing energy consumption by 15 to 50% versus comparable products.

Specification of FFU(Fan Filter Unit)

Body shape size(W×H×D)mm	The filter size(W×H×D)mm	Air inlet dimensions(W×H×D)mm	The rated air flow m³/h	Filter area	Let dust(g)	Initial resistance surface wind speed 0.5m/s	Initial resistance(Pa)	Filtration efficiency
320×320×180	282×282×69	300×300	150	2.7	150	≤130	400	H13
484×484×180	446×446×69	464×464	350	6.7	400	≤130	400	H13
610×610×180	572×572×69	590×590	600	11.1	650	≤130	400	H13
630×630×180	587×587×69	610×610	650	11.9	700	≤130	400	H13
915×610×180	887×572×69	895×590	900	17.1	1000	≤130	400	H13
1220×610×180	1182×572×69	1200×590	1200	23.1	1400	≤130	400	H13
1260×630×180	1222×592×69	1240×610	1300	24.7	1500	≤130	400	H13

Notes

1.To prevent motor overheating the installation of protective devices is recommended.

2.Special size available upon request.

3.Filter can be HEPA or ULPA .

4.Motor has overheat circuit protection

5.Control Box can be hand-controlled or computer program system control

6.Height in above specification doesn’t include filter

Applications of FFU(Fan Filter Unit)
1. Electronics Manufacturing: FFUs are widely used in semiconductor fabrication facilities, PCB (Printed Circuit Board) production, and other electronics manufacturing processes where a clean and particle-free environment is crucial.
2. Pharmaceutical Industry: Cleanrooms in pharmaceutical production, especially for drug formulation and packaging, rely on FFUs to maintain aseptic conditions.
3. Biomedical Research: Laboratories conducting biomedical research and experiments require clean air to ensure the accuracy and reliability of results.
4. Food Processing: In food processing plants, especially for sensitive products, FFUs help maintain a hygienic environment.

All sizes and styles can be customized

Size (WxLxHmm)	575x875x375	575x1175x375	615x1225x375	875x1175x375
Air chamber material	Galvalume / aluminum / stainless steel
Air Flow (m³/h)	800~900	1000~1100	1100~1200	1600~1700
Air velocity (m/s)	0.35~0.55	0.35~0.55	0.35~0.55	0.35~0.55
Total pressure (Pa)	175	185	195	255
Power (W)	85	95	115	235
Weight (kg)	27	37	40	42
Noise dB (1m below the HEPA filter)	55~63
Vibration (mm/s)	0.2~0.7
Power supply	220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode	3 levels adjustable manually or group control by computer
Options	DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device
HEPA filter - Size (WxHxDmm)	570x870x69	570x1170x69	610x1220x69	870x1170x69
HEPA filter - Efficiency	99.99% 0.3μm
HEPA filter - Frame	High quality anodized aluminum
HEPA filter - Initial pressure drop	110Pa@0.45m/s±15%
HEPA filter - Trait	PU foam endless gasket
