304 Stainless Steel Frame HEPA H13 FFU Fan Filter Units For Air Purification

Brand Name:	Compo
MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Usage:

Non-dust Workspace

Type:

Customized

Warranty:

1 Year

Efficiency:

H13 H14 U15 U16

Material:

Galvalume/Stainless Steel/ Cold Rolled Steel With Powder Coated

Packaging Details:

PE bags inside, Carton box outside

Supply Ability:

1000pcs per day

Highlight:

H13 FFU Fan Filter Units

304 Stainless Steel Frame FFU Unit

Air Purification FFU Hepa Filter

Product Description

304 Stainless Steel Frame HEPA H13 FFU Fan Filter Unit For Air Purification

Introduction:
It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.

Operating features:
1: Lightweight, corrosion-resistant construction is completely smooth and clean room –compatible.
2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.
3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.
4:it is operates at low noise and power consumption levels

Specification of FFU(Fan Filter Unit)

Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	Ordinary Product
Place of Origin	China
	Guangdong
Warranty	1 Year
Product name	FFU Fan Filter Unit
Application	Clean room ISO5 ISO 100
Material	Stailess Steel SUS304/201/Q195 /galvanized Sheet
After-sales Service Provided	Online Technical Support
Power	220V 50/60 Hz 110V
Size	25.2 x 24.4 x 15 inche
Efficiency	H13 H14 U15 U16
Air volume	700-1800m3/h

With more than 15 years of experience in the field of air filtration, Compo Shenzhen Technology Co.Ltd is a custom air filter and air filter material manufacturer offering cost-effective air cleaning solutions via various air filtration materials and custom air filters. Our product range includes air purifier filters, HEPA filters, activated carbon filters, pocket filters, cabin filters, HVAC filters, panel filters, prefilters, ventilation filters, Air filter material, HEPA filter material, pocket filter media, paint stop filters, ceiling filters, prefilter material, fan filter units, humidifier filters, AHU filters and melt-blown fabric, etc Headquartered in Shenzhen, we consistently strive to develop fresh and innovative products for budding markets and are dedicated to regular product expansion. With our deep industry experience and production expertise, we're your top choice for reliable air filter products. Quality is our culture. Our air filter products are strictly checked according to the Quality Assurance Management System. OED and OEM services are available.

All sizes and styles can be customized

Size (WxLxHmm)	575x875x375	575x1175x375	615x1225x375	875x1175x375
Air chamber material	Galvalume / aluminum / stainless steel
Air Flow (m³/h)	800~900	1000~1100	1100~1200	1600~1700
Air velocity (m/s)	0.35~0.55	0.35~0.55	0.35~0.55	0.35~0.55
Total pressure (Pa)	175	185	195	255
Power (W)	85	95	115	235
Weight (kg)	27	37	40	42
Noise dB (1m below the HEPA filter)	55~63
Vibration (mm/s)	0.2~0.7
Power supply	220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode	3 levels adjustable manually or group control by computer
Options	DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device
HEPA filter - Size (WxHxDmm)	570x870x69	570x1170x69	610x1220x69	870x1170x69
HEPA filter - Efficiency	99.99% 0.3μm
HEPA filter - Frame	High quality anodized aluminum
HEPA filter - Initial pressure drop	110Pa@0.45m/s±15%
HEPA filter - Trait	PU foam endless gasket

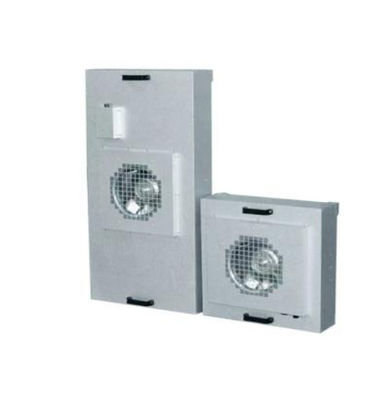

304 Stainless Steel Frame HEPA H13 FFU Fan Filter Units For Air Purification 1
