Low Noise DC Motorized FFU Fan Powered Hepa Filter for Cleanroom

Brand Name:	Compo
MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

FFU Fan Filter Unit

Application:

Cleanroom

Power:

220V 50/60 Hz 110V

Efficiency:

H10-H14 U9-U13 Filter (Customized)

Suitable For:

FFU

Packaging Details:

PE bags inside, Carton box outside

Supply Ability:

1000pcs per day

Highlight:

FFU Fan Powered Hepa Filter

DC Motorized FFU Filter

Cleanroom Fan Powered Hepa Filter

Product Description

Low Noise DC Motorized FFU Fan Filter Unit FFU With High Efficiency HPEA Filter

Description of FFU(Fan Filter Unit)

FFU fan filter unit is mainly used for purify the air into the clean area to make sure it can reach requirement cleanliness class,
Uniform air wind blow out at a speed of 0.45m/s with adjustable speed ±20%..
FFU Fan Filter Unit which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional (laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.

Specification of FFU(Fan Filter Unit)

Body shape size(W×H×D)mm	The filter size(W×H×D)mm	Air inlet dimensions(W×H×D)mm	The rated air flow m³/h	Filter area	Let dust(g)	Initial resistance surface wind speed 0.5m/s	Initial resistance(Pa)	Filtration efficiency
320×320×180	282×282×69	300×300	150	2.7	150	≤130	400	H13
484×484×180	446×446×69	464×464	350	6.7	400	≤130	400	H13
610×610×180	572×572×69	590×590	600	11.1	650	≤130	400	H13
630×630×180	587×587×69	610×610	650	11.9	700	≤130	400	H13
915×610×180	887×572×69	895×590	900	17.1	1000	≤130	400	H13
1220×610×180	1182×572×69	1200×590	1200	23.1	1400	≤130	400	H13
1260×630×180	1222×592×69	1240×610	1300	24.7	1500	≤130	400	H13

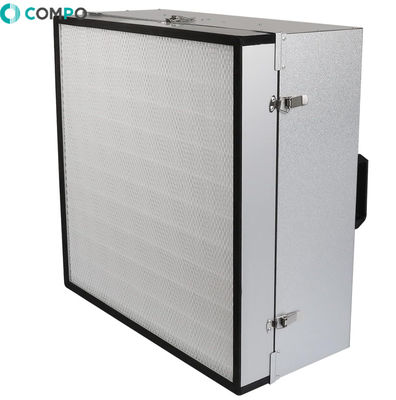

Low Noise DC Motorized FFU Fan Powered Hepa Filter for Cleanroom 0

Features of FFU(Fan Filter Unit)
1. Low energy consumption, high performance, low operating cost
2. Perfect structure, low height, uniform wind speed
Scientific air duct design, low resistance, low noise, effectively save the space of technical interlayer.
3. different size available ,adapt to a variety of GRID system; Be able to timely respond to customer's change of external box material, special power supply or fan configuration;
4. Safe and humanized design
Can walk high strength box, to ensure the safety of installation or maintenance personnel, can be remote monitoring and adjustment, easy to operate;
5. Multiple safety protection devices
Equipped with overcurrent relay, motor protection device, fault display lamp, fault signal circuit, and can be installed temperature protector, fuse, motor circuit breaker, etc.

All sizes and styles can be customized

Size (WxLxHmm)	575x875x375	575x1175x375	615x1225x375	875x1175x375
Air chamber material	Galvalume / aluminum / stainless steel
Air Flow (m³/h)	800~900	1000~1100	1100~1200	1600~1700
Air velocity (m/s)	0.35~0.55	0.35~0.55	0.35~0.55	0.35~0.55
Total pressure (Pa)	175	185	195	255
Power (W)	85	95	115	235
Weight (kg)	27	37	40	42
Noise dB (1m below the HEPA filter)	55~63
Vibration (mm/s)	0.2~0.7
Power supply	220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode	3 levels adjustable manually or group control by computer
Options	DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device
HEPA filter - Size (WxHxDmm)	570x870x69	570x1170x69	610x1220x69	870x1170x69
HEPA filter - Efficiency	99.99% 0.3μm
HEPA filter - Frame	High quality anodized aluminum
HEPA filter - Initial pressure drop	110Pa@0.45m/s±15%
HEPA filter - Trait	PU foam endless gasket

Low Noise DC Motorized FFU Fan Powered Hepa Filter for Cleanroom 1
