V Bank Pocket Air Filter Plastic H10 Hepa Filter Frame With High Air Volume

V Bank Pocket Air Filter Plastic H10 Hepa Filter Frame With High Air Volume

Brand Name:	Compo
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Keywords:

V Bank Air Filter

Certification:

CE / ISO

Color:

Black

Material:

ABS

Highlight:

H10 Hepa Filter Frame

Plastic Hepa Filter Frame

V Bank Pocket Air Filter Frame

Product Description

Plastic Frame V Bank Pocket Air Filter H10 Hepa Filter With High Air Volume

V bank sub-high efficiency filter Feature

Adopt ABS plastic frame, which has large effective filtering area, small resistance, light weight, large capacity and high air volume.
When ABS is incinerated, no toxic gas is generated, which is beneficial to environmental protection or disposal.
Can be used as the pre-filtration for high efficiency air filter with mounting flange frame (25mm thick).
Interchangeable with the commonly used bag filters to extend the service life of high efficiency air filters.
No dust-free capacity without partition design, filter block with compact "V" type.
The construction is strong to ensure good performance under turbulent conditions, and the two-way filter material can be adapted to the design of the front or the opposite side. Long filter life, reduced replacement and maintenance costs, saving operating costs and energy.
High air volume type with large filtering area, large dust holding capacity, high air volume and small space.

Specification

item	value
Applicable Industries	Manufacturing Plant, Other
Weight (KG)	2KG
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Place of Origin	China
Applicable Industries	Manufacturing Plant
Type	2V,4V
Product name	Plastic v bank frame
Color	Blue,Black
Material	ABS
Construction	Cartridge Filter
Compatible Device	V Bank Air Filter Frame
Advantage	High quality ABS material to protect the form cracking
size	592592600 or Customized size
Warranty	1 year

V type Sub-hepa air filter structure

1). High dust holding capacity, no partition design: The filter is made of ultra-fine, moisture-proof and fire-resistant glass fiber. The thermoplastic separator ensures the same fold distance and ensures the best airflow with the least resistance. The same pleat spacing makes full use of the entire depth of the filter material to ensure a greater dust holding capacity.

2). V-type air volume filter adopts ABS engineering plastic frame, light weight, low initial resistance This filter is especially suitable for complex operating systems, such as: high wind speed system, variable air volume system, high humidity or corrosive environments and other special The required system.

3). Temperature: 80 °C

4). Humidity: 100%

5). The V bank filter efficiency includes highly efficient, sub-high efficiency and medium efficiency three.

6). The frame is made of galvanized steel or plastic, filter material using ultra-fine polypropylene filter paper or glass fiber filter paper.

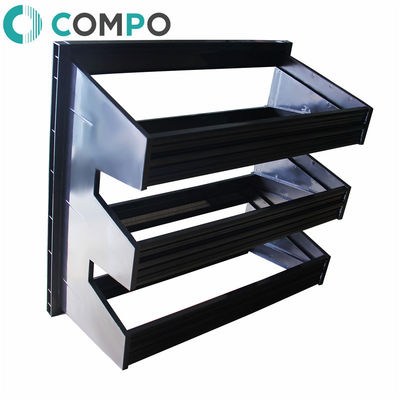

V bank filter frame

Our V bank filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
592592292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592490292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592287292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC

Box filter plastic frame

Our Box filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
610610292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
610305292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
592592292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC

Panel filter plastic frame

Compo panel filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
46mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
70mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
96mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

Pocket filter plastic frame

Compo pocket filter plastic frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
20mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
25mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
