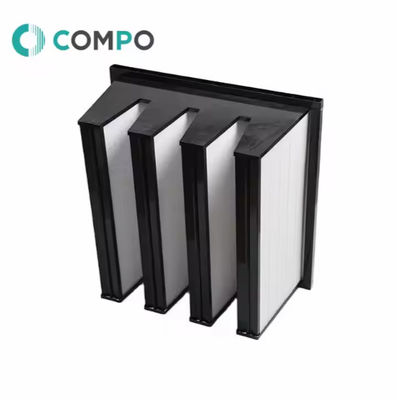

Light Weight 4V Rigid V Bank Filter Dust F5 / F6 Efficiency Air Condition Filter

Light Weight 4V Rigid V Bank Filter Dust F5 / F6 Efficiency Air Condition Filter

Brand Name:	Compo
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Efficiency:

F5-F9, H10-U15

Name:

Medium Efficiency V Bank Air Filter

Applicable Industries:

Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works

Color:

Black

Highlight:

Rigid V Bank Filter

4V Rigid Dust Filter

F6 Air Condition Filter

Product Description

Light Weight 4V Rigid V Bank Filter Dust , F5 / F6 Efficiency Air Condition Filter

Characteristics:

1: The 4 V rigid Cell air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.

2: The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .

3: The polypropylene plastic frame can be Incineration when use out .

4: the filter with flange can replace by pocket air filter.

The sealant around the media so that the air filter without any air leaking

5: the4 V rigid Cell air filterefficiency range: F6,F7, F8,F9(EN779).

Specification of the V-bank HEPA filter:

item	Industrial H13 Air Filter Manufacturer, V type Filter V bank filter
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Warranty of core components	1 Year
Condition	New
Efficiency	F5-F9, H10-U15
Construction	Box Filter
Place of Origin	China
	Guangdong
Dimension(LWH)	592x592x292mm
Weight	5KG
Warranty	1 Year
Filter types	V type
Material	Glassfiber Media
Frame	Plastic Box
After-sales Service Provided	Online Service Provided
Filtration Grade	F5-F9 H10-H14
Dimension(LWH)	Standard Size
Optional plastic frame	21mm/25mm/38mm/46mm
Brand	Compo
Max. Humidity	100%
Airflow	3400m3/h

V bank filter frame

Our V bank filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
592592292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592490292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592287292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC

Box filter plastic frame

Our Box filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
610610292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
610305292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
592592292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC

Panel filter plastic frame

Compo panel filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
46mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
70mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
96mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

Pocket filter plastic frame

Compo pocket filter plastic frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
20mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
25mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
