ABS V Filter Pleated HEPA Air Filter HVAC System With Galvanized Frame

Brand Name:	Compo
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Efficiency:

F5-F9, H10-U15

Applicable Industries:

Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works

Construction:

Box Filter

Dimension(L*W*H):

Standard Size

Highlight:

Pleated HEPA Air Filter

Galvanized Frame HEPA Air Filter

HVAC System Pleated HEPA Filter

Product Description

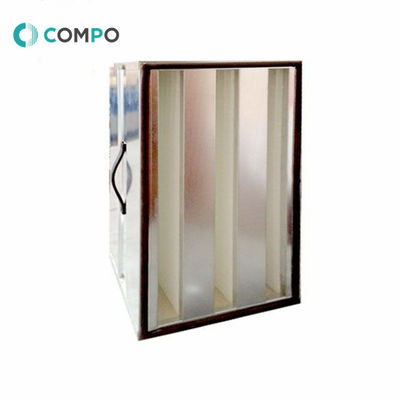

ABS V-Filter Pleated HEPA Air Filter HVAC System With Galvanized Frame

Description:
V-type air filter is mainly used for filtration of more than 0.3μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.

Features:
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany

Specification of the V-bank HEPA filter:

item	Industrial H13 Air Filter Manufacturer, V type Filter V bank filter
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Warranty of core components	1 Year
Condition	New
Efficiency	F5-F9, H10-U15
Construction	Box Filter
Place of Origin	China
	Guangdong
Dimension(LWH)	592x592x292mm
Weight	5KG
Warranty	1 Year
Filter types	V type
Material	Glassfiber Media
Frame	Plastic Box
After-sales Service Provided	Online Service Provided
Filtration Grade	F5-F9 H10-H14
Dimension(LWH)	Standard Size
Optional plastic frame	21mm/25mm/38mm/46mm
Brand	Compo
Max. Humidity	100%
Airflow	3400m3/h

V bank filter frame

Our V bank filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
592592292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592490292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592287292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC

Box filter plastic frame

Our Box filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
610610292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
610305292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
592592292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC

Panel filter plastic frame

Compo panel filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
46mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
70mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
96mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

Pocket filter plastic frame

Compo pocket filter plastic frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
20mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
25mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
