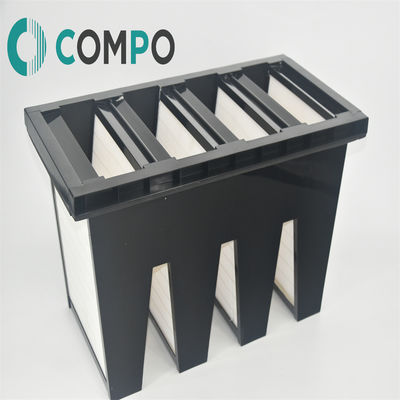

HVAC AHU System Sub - Hepa Air Filter W Type With Black Plastic Frame

HVAC AHU System Sub - Hepa Air Filter W Type With Black Plastic Frame

Brand Name:	Compo
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Name:

W Type Sub-hepa Air Filter

Efficiency:

F5-F9, H10-U15

Color:

Black

Material:

ABS

Highlight:

Sub Hepa Air Filter

W Type Hepa Air Filter

AHU System Hepa Air Filter

Product Description

HVAC AHU System Sub - Hepa Air Filter W Type With Black Plastic Frame

Benefits and Uses of V-Bank Sub-Effective Activated Carbon Filters:

Gas and Odor Removal: These filters are often used in environments where the removal of VOCs, odors, and gases is important, such as commercial kitchens, laboratories, and industrial spaces.
Increased Airflow Efficiency: The V-bank design allows for higher airflow rates compared to traditional flat or pleated filters, making it suitable for high-traffic HVAC systems.
Compact Design: The V-bank structure also saves space and reduces the bulk of the filter without sacrificing too much surface area for filtration.
Pre-filtering Role: They might be used in systems where gases and odors are a secondary concern, complementing primary filters that focus more on particulate matter.

Specification

item	Industrial H13 Air Filter Manufacturer, V type Filter V bank filter
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Warranty of core components	1 Year
Condition	New
Efficiency	F5-F9, H10-U15
Construction	Box Filter
Place of Origin	China
	Guangdong
Dimension(LWH)	592x592x292mm
Weight	5KG
Warranty	1 Year
Filter types	V type
Material	Glassfiber Media
Frame	Plastic Box
After-sales Service Provided	Online Service Provided
Filtration Grade	F5-F9 H10-H14
Dimension(LWH)	Standard Size
Optional plastic frame	21mm/25mm/38mm/46mm
Brand	Compo
Max. Humidity	100%
Airflow	3400m3/h

Feature

The galvanize frame w-type activated carbon air filt is suitable for a constant air flow and a variable air flow system, has strong adsorbability, and that specially designed thermoplastic spacer can ensure the same pleat interval and ensure that the air flow passes through with minimum resistance; and meanwhile, the design can increase the filter material area of the filter, thereby reducing energy consumption and saving operation cost.

V bank filter frame

Our V bank filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
592592292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592490292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592287292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC

Box filter plastic frame

Our Box filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
610610292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
610305292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
592592292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC

Panel filter plastic frame

Compo panel filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
46mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
70mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
96mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

Pocket filter plastic frame

Compo pocket filter plastic frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
20mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
25mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
