Compact Plastic / Galvanized V Bank Air Filter Frame Medium Efficiency

Compact Plastic / Galvanized V Bank Air Filter Frame Medium Efficiency

Brand Name:	Compo
MOQ:	200pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Name:

Medium Efficiency V Bank Air Filter

Frame Material:

Plastic

Color:

Black

Material:

ABS

Highlight:

Plastic Air Filter Frame

Galvanized V Bank Filter Frame

Compact Air Filter Frame

Product Description

Medium Efficiency V Bank Air Filter Compact Design , Plastic / Galvanized Frame

Description of the V-bank HEPA filter:
V-type air filter is mainly used for filtration of more than 0.3μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.

Feature of the V-bank HEPA filter:

Adopt active carbon particle and superfine synthetic fiber composite material to effectively remove harmful substance in that air；
Capture 0.3um dust particles, efficiency as high as 99.99%；
Strong adsorption performance, large filtration area and high filtration efficiency；
Reduce installation time and space；
Ensure low resistance and reducing operation cost；
Dimensions can be customized；

Specification of the V-bank HEPA filter:

item	Industrial H13 Air Filter Manufacturer, V type Filter V bank filter
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Warranty of core components	1 Year
Condition	New
Efficiency	F5-F9, H10-U15
Construction	Box Filter
Place of Origin	China
	Guangdong
Dimension(LWH)	592x592x292mm
Weight	5KG
Warranty	1 Year
Filter types	V type
Material	Glassfiber Media
Frame	Plastic Box
After-sales Service Provided	Online Service Provided
Filtration Grade	F5-F9 H10-H14
Dimension(LWH)	Standard Size
Optional plastic frame	21mm/25mm/38mm/46mm
Brand	Compo
Max. Humidity	100%
Airflow	3400m3/h

Application of the V-bank HEPA filter:
Medium filtration for clean room and air conditioning & ventilation system of a pharmaceutical factory
Filtration for high temperature VAV air conditioning & ventilation systems
Filtration for air condition system which in tense installing space but low resistance required

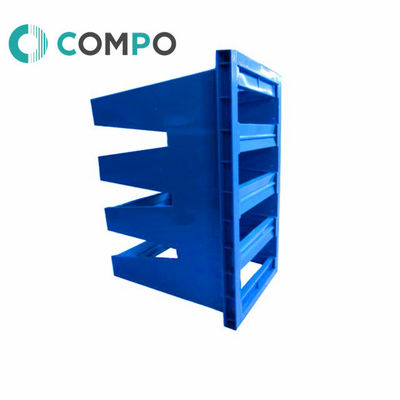

V bank filter frame

Our V bank filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
592592292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592490292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC
592287292mm 6V/5V/4V/3V/2V	Blue/Black/Green	20/25mm	ABS PVC

Box filter plastic frame

Our Box filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
610610292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
610305292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC
592592292mm 5V/4V	Blue/Black/Green	20/25mm	ABS PVC

Panel filter plastic frame

Compo panel filter frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
46mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
70mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
96mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

Pocket filter plastic frame

Compo pocket filter plastic frame varies in different sizes, header thicknesses, and colors. Below are some of our common sizes for you to choose. We also accept customized sizes.

Size	Color	Header thickness	Raw material
20mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC
25mm depth Any length and width	Blue/Black/Green	20/25mm	ABS PVC

* OEM made

OEM is warmly welcomed, we can arrange your own color or label, print your OEM package,and make your own shape according to your drawing.

* After-sales service

We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
